LK-AMPD-D High Speed Amplified Microwave InGaAs Photodetector
- Lebelo le Phahameng, Bandwidth e pharaletseng
- Bias-T e kenyelelitsoeng
- O/E Hybrid e Kopantsoeng
- Phaello e Phahameng, Lerata le tlase, Broadband
- E Tiisitsoe ka Sekhahla, Sehokelo sa SMA
- Lefifi le Lefifi le Tlase, karo-karolelano e phahameng ea lets'oao le lerata.
- Ntho e Nyenyane ea Foromo.
Tlhaloso ea Sehlahisoa
LK-AMPD-D ke motsoako oa likarolo tsa optical le electronic, tse nang le photodiode e pharaletseng ea InGaAs le amplifier ea lerata le fokolang. InGaAs PIN photodiode e na le sebaka sa kutlo ho tloha ho 1000 ho isa ho 1650nm. Amplifier ea lerata le tlase e ithorisa ka phaello ea RF ea 30dB.
LK-AMPD-D e khona ho fana ka li-bandwidth tsa 12GHz kapa 20GHz. Sesebelisoa sena se sebetsa ka matla a +9V. E etselitsoe ho sebetsa ka fiber e tloaelehileng ea mofuta o le mong 9/125μm e le ho kenya letsoho. Sehlahisoa sa RF se na le sehokelo sa mofuta oa SMA se ts'oanang le 50 ohms.
LK-AMPD-D e tiisitsoe ka tsela e thibelang ho kenella ha mongobo le litšila tse ling, 'me e na le boima bo ka tlaase ho 23 grams. E netefalitsoe ho fihlela litlhoko tsa Restriction of Hazardous Substances (RoHS) Directive 2.0.
Technical tobileng
| Boemo bo Tloaelehileng le bo Felletseng | ||||
|---|---|---|---|---|
| paramethara | Sym. | mofuta | Rating | Unit |
| Mocheso oa polokelo | TSTG | -45 ho ea ho +85 | -55 ho ea ho +100 | ℃ |
| Boemo ba mocheso oa linyeoe tse sebetsang | TC | 25 | -40 ho ea ho +85 | ℃ |
| Voltage e ikhethileng | VR | +9 | +9 ho isa +12 | V |
| Optical Input Power | Pin | 0 | + 10 | dBm |
| Matla a Optical a Cheleng | PB | - | + 13 | dBm |
| Mocheso oa lead soldering | Tp | 280 (10s) | 330 (10s) | ℃ |
| Litšobotsi tsa Motlakase / Optical (TC = 22 ± 3 ℃ ) | ||||||
|---|---|---|---|---|---|---|
| paramethara | tshwa | Boemo ba Teko | Litekanyetso tsa Parameter | Unit | ||
| Boemo ba Wavelength | λ | - | 1000 ho isa ho 1650 | nm | ||
| Maqhubu a Range | - | - | X - Sehlopha | Ku-Band | - | |
| Bandwidth ea Lets'oao le Lenyane | f-3dB | TC = 22 ± 3℃ | 0.3 ho isa ho 12 | 2 ho isa ho 20 | GHz | |
| Boikarabelo | Re | VR =+9V, Pin =10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A/W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Bophara ba Amplitude | A | TC =-45～+85 ℃ | ≤ ± 2 | dB | ||
| Saturation Optical Matla | Ps | VR = +9 V, λ = 1550 nm AC Modulated | + 10 | dBm | ||
| Phaello ea Letšoao la RF | G | - | 30 ± 1 | dB | ||
| Saturation RF Output Power | Ptsoa | - | + 10 | dBm | ||
| Tlhahiso VSWR | VSWR | - | 2 | - | ||
| Liphello tsa Impedance | RL | - | 50 | Ω | ||
●Li-Curves tse Tloaelehileng tsa Karabelo

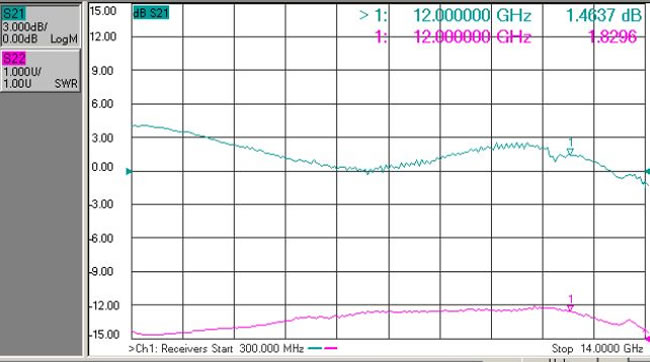

( Feie . 1 X- Band Photodetector Frequency Response)
( Feie . 2 Ku - Band Photodetector Frequency Response)

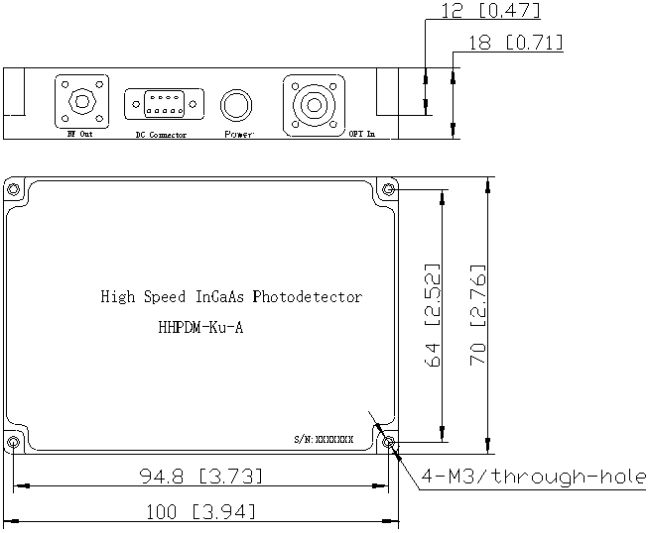

●Dimension and Pins ( Unit: mm[inch] )
Sehokelo sa RF: SMA
●Ho laela Boitsebiso
Leqephe la 1:
| Code | Phaello ea Letšoao la RF | mantsoe |
| D | 30 dB | Tloaelehileng & Maqhubu a Bohareng |
Leqephe la 2:
| Code | Bophahamo ba Analoge |
| X | 0. 3 ～ 12 GHz |
| Ku | 2 - 20 GHz |
Leqephe la 3:
| Code | sehokedi Type | mantsoe |
| N | Ha ho Sehokedi | Mokhoa o le mong 9 / 125 μm fiber pigtail |
| A | FC / APC | |
| P | FC / PC |
●Litlhokomelo
Fiber bending radius e seng ka tlase ho 20 mm bakeng sa ho qoba ho senyeha ha fiber.
Etsa bonnete ba hore karolo ea fiber coupling e hloekile pele u e hokela ho opto-circuit .
Tšireletso e loketseng ea ESD ea hlokahala polokelong, ho lipalangoang le ho sebelisoa.
Li-photodetectors tsohle tsa rona tse tloaelehileng li ka etsoa ka mokhoa oa li-module!
dikopo
Ts'ebetso ea Boitsebiso ba Radar
Ntoa ea Elektroniki
Tekanyo ea Antenna
Khokahano ea Fiber Optic
Ts'ireletso le ho lekola
