LK-NY13T UWB Transmitter e fetotsoeng ka ho toba
- Laser ea DFB ea lebelo le phahameng ka ho toba
- Ultra-wideband (e betere ho feta 18GHz)
- Taolo ea Matla a Othomathiki
- Mocheso oa mocheso oa kesi: (-40℃～70℃)
- Phaello e Phahameng ea Matla
- Matla a ho hlahisa a phahameng
- Lerata la Matla a Tlase (RIN)
Tlhaloso ea Sehlahisoa
LK-NY13T Transmitter e entsoe ka likarolo tse tsoetseng pele, tse kenyelletsang lebelo le phahameng ka ho toba le Distributed Feedback (DFB) laser, tsamaiso e ikemetseng ea matla a optical, subsystem e laolang mocheso o itekanetseng, tsamaiso ea phetoho ea voltage stabilization, le ts'ebetso ea ho shebella le boemo ba boemo.
Transmitter ena e tsoetseng pele ea optical e sebetsa ka bolelele ba 1310nm mme e ithorisa ka bandwidth ea modulation e fetang 18GHz, e netefatsang bokhoni ba phetisetso ea data ka lebelo le holimo. E fana ka matla a ho fihla ho 10mW, a tšoauoang ke lerata le tlase le matla (RIN), le tlatsetsang botsitsong ba eona bo botle ba maqhubu.
Mohaho oa phepelo ea matla oa LK-NY13T Transmitter o etselitsoe ho kenya motlakase o le mong o nepahetseng, ho netefatsa ts'ebetso e tsitsitseng ho pholletsa le mefuta e mengata ea motlakase ho tloha ho +7V ho ea +36V. Ho feta moo, transmitter e na le tšobotsi e bonts'ang boemo bo netefatsang maemo a tloaelehileng a phepelo ea motlakase le matla a optical, a fa basebelisi maikutlo a ts'ebetso ea nako ea nnete.
Technical tobileng
Lintlha tse phahameng haholo
| paramethara | letšoao | Min. | Mofuta. | Max. | Unit |
| Storage mocheso | TSTG | -55 | + 25 | + 85 | ℃ |
| Mocheso o sebetsang | TC | -40 | + 25 | + 70 | ℃ |
| Matla a kenyang RF1 | Pin | - | + 10 | + 20 | dBm |
| Palo ea li-volts | Vin | +7 | + 12 | + 36 | V |
(1) Leqhubu le tsoelang pele (CW) mokhoa oa ho sebetsa.
Tlhaloso ea Optical le Motlakase (TC = 22±3℃)
| paramethara | letšoao | boemo | Min. | Mofuta. | Max. | Unit |
| Wavelength | λ | - | - | 1310 | - | nm |
| Khafetsa (3dB) | f3dB | X sehlopha | 0.1 | - | 12 | GHz |
| Ku band | 1 | - | 18 | |||
| Matla a hlahisoang ke khanya | P | - | 5 | 10 | - | mW |
| Lerata le Lekanang le Matla | LERATA | - | - | - | -155 | dBc/Hz |
| Khutlisetsa tahlehelo (VSWR) | VSWR | X sehlopha | - | - | 2 | - |
| Ku band | - | - | 2.2 | |||
| Kenya 1 dB Compress | - | - | + 13 | + 15 | - | dBm |
Phepelo ea Matla (TC = 22±3℃)
| paramethara | Min. | Mofuta. | Max. | Unit |
| Palo ea li-volts | +7 | + 12 | + 36 | V |
| Current(2) | 0.07 | 0.1 | 1 | A |
(2) Boemo ba teko:Vin=+12V.
● Tsela e Tloaelehileng ea Karabelo

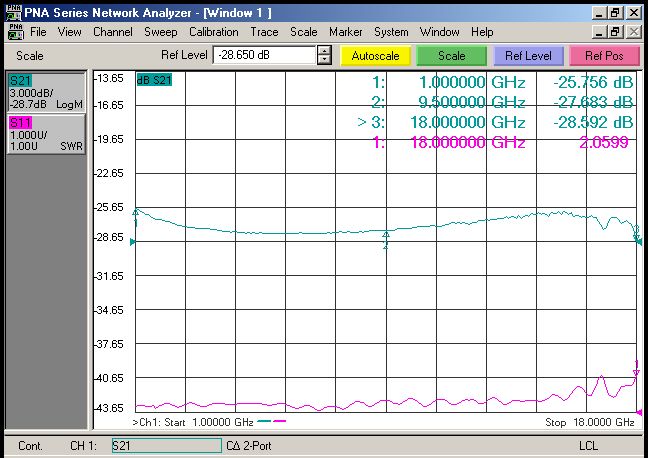

Setšoantšo sa 1 LK-NY13T-X Transmitter Tloaelehileng ea Karabo Curve
Setšoantšo sa 2 LK-NY13T-Ku Transmitter Tsela e Tloaelehileng ea Karabelo
● Spectrogram e Tloaelehileng
Setšoantšo sa 3 LK-NY13T Transmitter E Tloaelehileng ea Spectrogram
● Dimension Unit:mm[inch]

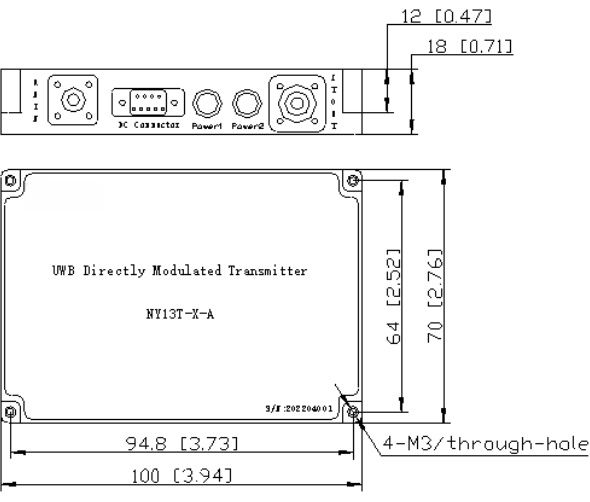

Setšoantšo sa 4 LK-NY13T Transmitter Dimension
Sehokelo sa RF: SMA
Sehokelo sa Matla: J30J-9-ZKP
● Pin Of Power Supply
| paramethara | Tlhaloso | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Palo ea li-volts | Vin | NC | lakg | NC | |||||
● Taelo Information
Leqephe la 1:
| letšoao | Tlhaloso |
| X | 0.1 - 12 GHz |
| Ku | 1 - 18 GHz |
Leqephe la 2
| letšoao | sehokedi Type | Tlhaloso |
| N | Customized | Customized |
| A | FC / APC | Tloaelo ea 9/125μm SM fiber |
| P | FC / PC | Tloaelo ea 9/125μm SM fiber |
dikopo
Antenna le Radar
Sistimi ea li-countermeasure tsa elektroniki
Analog RF e hokahanya phetiso
Puisano ea Broadband Wireless
Seteishene sa motheo sa puisano ea mehala
