LK-HPPD-Ku High Power InGaAs Balanced Photodetector

  • Boholo ba bandwidth
  • Bias-T e kenyelelitsoeng
  • DC Kopana
  • E Tiisitsoe ka Sekhahla, Sehokelo sa SMA
  • Lefifi le Lefifi le Tlase, karo-karolelano e phahameng ea lets'oao le lerata.
  • Ntho e Nyenyane ea Foromo.
dipatlisiso

+ 86 29 88244373

Tlhaloso ea Sehlahisoa

High-Speed ​​Balanced Photodetector (HPPD-Ku) ke sesebelisoa se nepahetseng sa optoelectronic se etselitsoeng lisebelisoa tsa digital le analog. Mojule ona o kopanya InGaAs PIN photodiode e nang le karabo ea spectral ho tloha ho 1250 ho ea ho 1650 nanometers, ho kenyelletsa le lisebelisoa tsa elektronike tse hlokahalang ho netefatsa botšepehi le ts'ebetso ea matšoao.

LK-HPPD-Ku e khona ho fana ka bandwidth ea 18 gigahertz, e etsang hore e loketse lits'ebetso tsa phetisetso ea data e potlakileng. E sebetsa ka matla a matla a +5-volt, a lumellana le litlhoko tse tloaelehileng tsa matla bakeng sa botsitso le katleho. Mojule o lumellana le mokhoa o le mong oa 9/125-micrometer optical fibers, ho netefatsa hore ho kopantsoe ka mokhoa o se nang moeli le lisebelisoa tsa fiber tse teng. Boema-kepe ba seea-le-moea sa Radio Frequency (RF) bo na le sehokelo se lumellanang le SMA, se ts'oanang le 50 ohms, se tsamaisang phetiso e nepahetseng ea mats'oao le ho fokotsa tahlehelo ea mats'oao.

Technical tobileng
Boemo bo Tloaelehileng le bo Felletseng
paramethara Sym. mofuta Rating Unit
Mocheso oa polokelo TSTG -45 ho ea ho +85 -55 ho ea ho +100 ℃
Boemo ba mocheso oa linyeoe tse sebetsang TC 25 -40 ho ea ho +85 ℃
Voltage e ikhethileng VR +5 +5 ～ +9 V
Optical Input Power Pin + 10 + 17 dBm
Matla a Optical a Cheleng PB - + 20 dBm
Mocheso oa lead soldering Tp 280 (10s) 330 (10s) ℃
Litšobotsi tsa Motlakase / Optical (TC = 22 ± 3 ℃ )
paramethara tshwa Boemo ba Teko Litekanyetso tsa Parameter Unit
Boemo ba Wavelength λ - 1000 ho isa ho 1650 nm
Maqhubu a Range - - Ku-Band -
Bandwidth ea Lets'oao le Lenyane f-3dB TC = 22 ± 3℃ 0.8 ho isa ho 18 GHz
Boikarabelo Re VR , BAKENG SAin =1mW λ = 1310 nm ≥ 0.85 A/W
λ = 1550 nm ≥ 0.8
Bophara ba Amplitude A TC =-45～+85 ℃ ≤ ± 1.5 dB
Saturation Optical Matla Ps VR , λ = 1550 nm
AC Modulated		 + 17 dBm
Lefifi la Hajoale Id VR ≤ 10 nA
Saturation RF Output Power Ptsoa - -10 dBm
Liphello tsa Impedance RL - 50 Ω

● Mekhoa e Tloaelehileng ea ho Arabela

(VR, λ=1550nm, TC =25 ºC, Pin=0dBm)

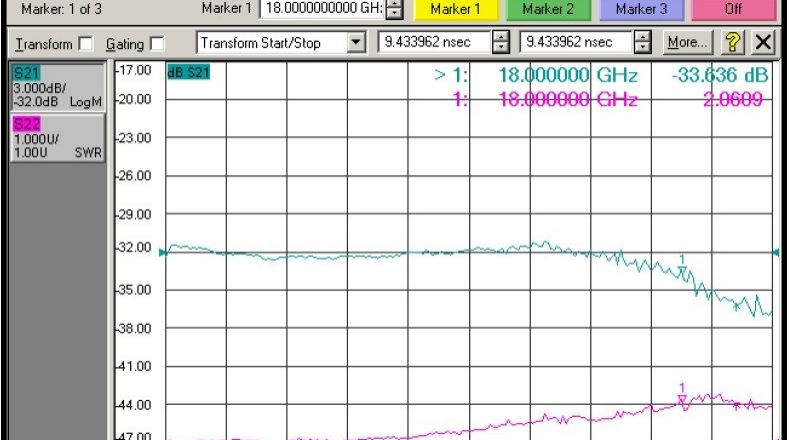

(Ku - Band Photodetector Frequency Response)

● Dimension and Pins ( Unit: mm[inch] )

●Ho laela Boitsebiso

Leqephe la 1:

Code Bophahamo ba Analoge
KU 0.8 ～ 18GHz

Leqephe la 2:

Code sehokedi Type mantsoe
N Ha ho Sehokedi Mokhoa o le mong 9 / 125 μm fiber pigtail
A FC / APC
P FC / PC

● Litlhokomelo

  • Fiber e kobehang radius e seng ka tlase ho 20 mm bakeng sa ho qoba ho senyeha ha fiber.

  • Etsa bonnete ba hore karolo ea fiber coupling e hloekile pele u e hokela ho opto-circuit.

  • Tšireletso e loketseng ea ESD ea hlokahala polokelong, ho lipalangoang le ho sebelisoa.

Li-photodetectors tsohle tsa rona tse tloaelehileng li ka etsoa ka mokhoa oa li-module!

dikopo

  • Puisano ea Optical-fiber

  • Ts'ebetso ea Boitsebiso ba Radar

  • Ntoa ea Elektroniki

  • Teko le Tekanyo ea Pontšo ea lebelo le phahameng

  • Ts'ireletso le ho lekola
