LK-MAMPD-4 Multichannel High Speed Amplified Microwave Photodetector
- Lebelo le Phahameng, Bandwidth e pharaletseng
- Bias-T e kenyelelitsoeng
- O/E Hybrid e Kopantsoeng
- Phaello e Phahameng, Lerata le tlase, Broadband
- E Tiisitsoe ka Sekhahla, Sehokelo sa SMA
- Lefifi le Lefifi le Tlase, karo-karolelano e phahameng ea lets'oao le lerata.
- Ntho e Nyenyane ea Foromo.
Tlhaloso ea Sehlahisoa
LK-MAMPD-4 ke mokhoa oa morao-rao oa optoelectronic hybrid system, o kopanyang Broadband Indium Gallium Arsenide (InGaAs) photodiode e nang le amplifier ea lerata le tlaase. Photodiode ena e tšoauoa ka bolelele ba sebaka sa spectral karabo ho tloha ho 1000 ho isa ho 1650 nanometers. Amplifier ea lerata le tlase ka har'a sistimi e fana ka phaello ea Radio Frequency (RF) ea li-decibel tse 15, e netefatsang botšepehi le ho holisa mats'oao.
LK-MAMPD-4 e khona ho fana ka li-bandwidth tsa 12 gigahertz le 18 gigahertz, e sebetsanang le mefuta e sa tšoaneng ea puisano e potlakileng le litlhoko tsa ho lemoha. Mojule o etselitsoe ho sebetsa ka matla a +5-volt a phepelo ea motlakase, e leng maemo a tloaelehileng lits'ebetsong tse ngata tsa elektronike. E lumellana le mekhoa e tloaelehileng ea 9/125-micrometer optical fibers, e netefatsang ho kopanngoa ka mokhoa o se nang moeli le marang-rang a teng a fiber optic. Boema-kepe ba RF bo na le sehokelo se lumellanang le SMP, se ts'oanang le 50 ohms bakeng sa phetisetso e nepahetseng ea mats'oao le tahlehelo e nyane ea lets'oao.
LK-MAMPD-4 e hahiloe ka mokhoa oa ho tiisa hermetic, e fanang ka tšireletso e matla khahlanong le maemo a tikoloho, ho matlafatsa nako e telele le ho tšepahala ha eona. E na le compact form factor, e boima ba ka tlase ho ligrama tse 62, e leng molemo bakeng sa lits'ebetso moo boima bo nahanoang. Mojule ona o netefalitsoe hore o tsamaisana le Restriction of Hazardous Substances (RoHS) Directive 2.0, e netefatsang ho latela maemo a thata a tikoloho le polokeho.
Technical tobileng
| Boemo bo Tloaelehileng le bo Felletseng | ||||
|---|---|---|---|---|
| paramethara | Sym. | mofuta | Rating | Unit |
| Mocheso oa polokelo | TSTG | -45 ho ea ho +85 | -55 ho ea ho +100 | ℃ |
| Boemo ba mocheso oa linyeoe tse sebetsang | TC | 25 | -40 ho ea ho +85 | ℃ |
| Voltage e ikhethileng | VR | +5 | +5 ho isa +9 | V |
| Optical Input Power | Pin | 0 | + 10 | dBm |
| Matla a Optical a Cheleng | PB | - | + 13 | dBm |
| Mocheso oa lead soldering | Tp | 280 (10s) | 330 (10s) | ℃ |
| Litšobotsi tsa Motlakase / Optical (TC = 22 ± 3 ℃ ) | ||||||
|---|---|---|---|---|---|---|
| paramethara | tshwa | Boemo ba Teko | Litekanyetso tsa Parameter | Unit | ||
| Boemo ba Wavelength | λ | - | 1000 ho isa ho 1650 | nm | ||
| Maqhubu a Range | - | - | X - Sehlopha | Ku-Band | - | |
| Bandwidth ea Lets'oao le Lenyane | f-3dB | TC = 22 ± 3℃ | 0.3 ho isa ho 12 | 2 ho isa ho 18 | GHz | |
| Boikarabelo | Re | VR =+5V, Pin =10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A/W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Bophara ba Amplitude | A | TC =-45～+85 ℃ | ≤ ± 2 | dB | ||
| Saturation Optical Matla | Ps | VR =+ 5 V, λ = 1550 nm AC Modulated |
10 | dBm | ||
| RF Signal Gain (Tlhaloso) | G | - | 15 ± 1 | dB | ||
| Saturation RF Output Power | Ptsoa | - | +3 | dBm | ||
| Tlhahiso VSWR | VSWR | - | 2 | - | ||
| Liphello tsa Impedance | RL | - | 50 | Ω | ||
● Mekhoa e Tloaelehileng ea ho Arabela
(Setšoantšo sa 1 X - Band Photodetector Frequency Response)

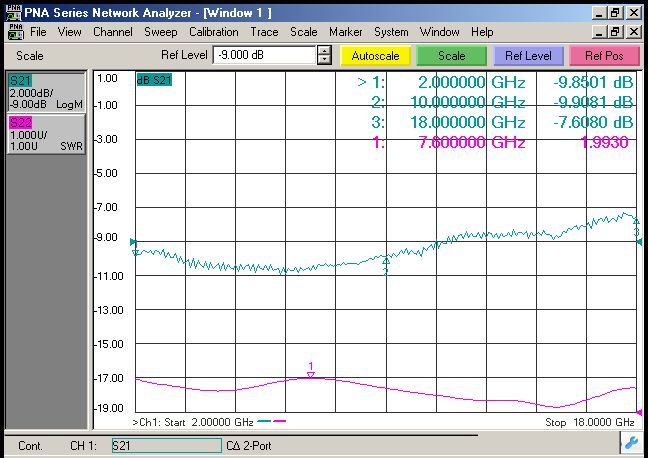

(Setšoantšo sa 2 Ku - Band Photodetector Frequency Response)

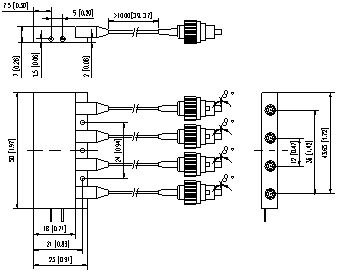

● Dimension and Pins ( Unit: mm[inch] )
Sehokelo sa RF: SMP
● Ho Odara Boitsebiso
Leqephe la 1:
| Code | Bophahamo ba Analoge |
| X | 0.2 - 12 GHz |
| Ku | 2 - 18 GHz |
Leqephe la 2:
| Code | sehokedi Type | mantsoe |
| N | Ha ho Sehokedi | Mokhoa o le mong 9 / 125 μm fiber pigtail |
| A | FC / APC | |
| P | FC / PC |
● Litlhokomelo
Fiber e kobehang radius e seng ka tlase ho 20 mm bakeng sa ho qoba ho senyeha ha fiber.
Etsa bonnete ba hore karolo ea fiber coupling e hloekile pele u e hokela ho opto-circuit.
Tšireletso e loketseng ea ESD ea hlokahala polokelong, ho lipalangoang le ho sebelisoa.
Li-photodetectors tsohle tsa rona tse tloaelehileng li ka etsoa ka mokhoa oa li-module!
dikopo
Ts'ebetso ea Boitsebiso ba Radar
Ntoa ea Elektroniki
Tekanyo ea Antenna
Khokahano ea Fiber Optic
Ts'ireletso le ho lekola
