LK-NY15T UWB Transmitter e fetotsoeng ka ho toba
- Laser ea DFB ea lebelo le phahameng ka ho toba
- Ultra-wideband (e betere ho feta 18GHz)
- Taolo ea Matla a Othomathiki
- Mocheso oa mocheso oa kesi: (-40 ℃～70℃)
- Wavelength 1550nm
- Excellent side mode suppression ratio
- E kopantsoe haholo, e nang le mojule
- Phaello e Phahameng ea Matla
- Matla a ho hlahisa a phahameng
Tlhaloso ea Sehlahisoa
LK-NY15T Transmitter e entsoe ka likarolo tse 'maloa tsa bohlokoa, tse kenyelletsang lebelo le phahameng ka ho toba le Distributed Feedback (DFB) laser, potoloho bakeng sa taolo ea motlakase oa othomathike, potoloho bakeng sa taolo ea mocheso o itekanetseng, potoloho ea phetoho ea voltage-stabilizing, le potoloho le pontšo ea potoloho.
Transmitter ena e sebetsa ka bolelele ba 1550nm mme e na le bandwidth ea modulation e fetang 18GHz, e nang le matla a tsoang a khonang ho fihla ho 10mW, ha a ntse a boloka bophahamo bo tsitsitseng ba maqhubu. E tsamaisoa ke motlakase o le mong o motle, o netefatsang ts'ebetso e tsitsitseng ho pholletsa le mefuta ea motlakase ho tloha ho + 7V ho ea ho + 36V.
Ho phaella moo, LK-NY15T Transmitter e na le mesebetsi e bontšang boemo bo tloaelehileng ba motlakase le motlakase oa optical, ho fa basebelisi maikutlo a utloahalang a ts'ebetso.
Technical tobileng
Lintlha tse phahameng haholo
| paramethara | letšoao | Min. | Mofuta. | Max. | Unit |
| Storage mocheso | TSTG | -55 | + 25 | + 85 | ℃ |
| Mocheso o sebetsang | TC | -40 | + 25 | + 70 | ℃ |
| Matla a kenyang RF1 | Pin | - | + 10 | + 20 | dBm |
| Palo ea li-volts | Vin | +7 | + 12 | + 36 | V |
(1) Leqhubu le tsoelang pele (CW) mokhoa oa ho sebetsa.
Tlhaloso ea Optical le Motlakase (TC = 22±3℃)
| paramethara | letšoao | boemo | Min. | Mofuta. | Max. | Unit |
| Wavelength | λ | - | - | 1550 | - | nm |
| Khafetsa (3dB) | f3dB | X sehlopha | 0.1 | - | 12 | GHz |
| Ku band | 1 | - | 18 | |||
| Matla a hlahisoang ke khanya | P | - | 5 | 10 | - | mW |
| Lerata le Lekanang le Matla | LERATA | - | - | - | -155 | dBc/Hz |
| Khutlisetsa tahlehelo (VSWR) | VSWR | X sehlopha | - | - | 2 | - |
| Ku band | - | - | 2.2 | |||
| Kenya 1 dB Compress | - | - | + 13 | + 15 | - | dBm |
Phepelo ea Matla (TC = 22±3℃)
| paramethara | Min. | Mofuta. | Max. | Unit |
| Palo ea li-volts | +7 | + 12 | + 36 | V |
| Current(2) | 0.07 | 0.1 | 1 | A |
(2) Boemo ba teko:Vin=+12V.
● Tsela e Tloaelehileng ea Karabelo

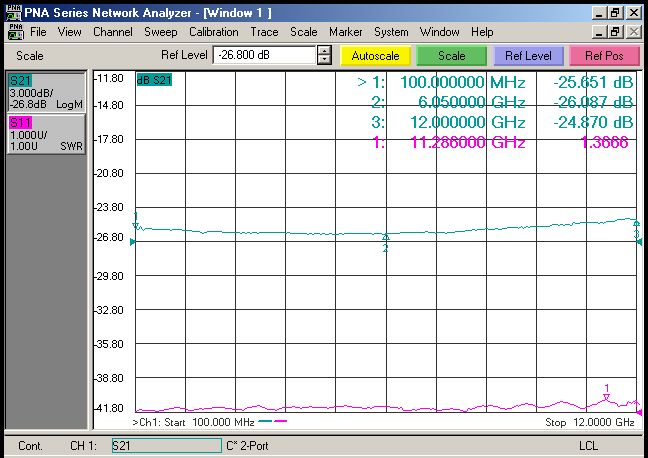

Setšoantšo sa 1 LK-NY15T-X Transmitter Tloaelehileng ea Karabo Curve
Setšoantšo sa 2 LK-NY15T-Ku Transmitter Tsela e Tloaelehileng ea Karabelo
● Spectrogram e Tloaelehileng
Setšoantšo sa 3 LK-NY15T Transmitter E Tloaelehileng ea Spectrogram
● Dimension Unit:mm[inch]

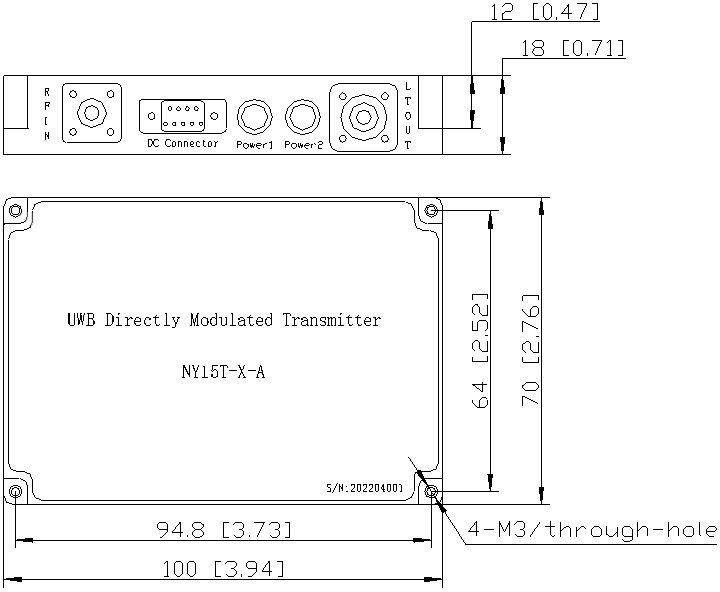

Setšoantšo sa 4 LK-NY15T Transmitter Dimension
Sehokelo sa RF: SMA
Sehokelo sa Matla: J30J-9-ZKP
● Pin Of Power Supply
| paramethara | Tlhaloso | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Palo ea li-volts | + 12V | NC | lakg | NC | |||||
● Taelo Information
Leqephe la 1:
| letšoao | Tlhaloso |
| X | 0.1 - 12 GHz |
| Ku | 1 - 18 GHz |
Leqephe la 2
| letšoao | sehokedi Type | Tlhaloso |
| N | Customized | Customized |
| A | FC / APC | Tloaelo ea 9/125μm SM fiber |
| P | FC / PC | Tloaelo ea 9/125μm SM fiber |
dikopo
Antenna le Radar
Sistimi ea li-countermeasure tsa elektroniki
Analog RF e hokahanya phetiso
Puisano ea Broadband Wireless
Seteishene sa motheo sa puisano ea mehala
