LK-NYC10D DML DFB Laser module
- DML DFB Laser Technology
- ITU-Standard DWDM Wavelength
- Phaello e Phahameng ea Matla
- Bandwide e betere ho feta 10GHz
- Botsitso bo botle ba wavelength
- Mocheso oa ho sebetsa (-40℃～70℃)
Tlhaloso ea Sehlahisoa
LK-NYC10D DML Laser Module ke mochine o tsoetseng pele oa optical transceiver, o kopantsoeng ka hloko ka laser Directly Modulated Laser (DML) Distributed Feedback (DFB), mochine oa ho laola matla a motlakase, mochine oa ho laola mocheso o itekanetseng, potoloho ea phetoho e tsitsitseng, le potoloho ea pontšo ea ho shebella.
Laser ena ea lebelo le phahameng ea DML DFB e etselitsoe ho sebetsa ka har'a maqhubu a maqhubu a maqhubu a maqhubu a maqhubu a maqhubu a mangata a tloaelehileng a ITU-standard dense wavelength division multiplexing (DWDM), ho netefatsa hore ho latela melaoana ea machaba ea likhokahano. Bandwidth ea modulation e feta 10GHz, e thusa bokhoni ba phetisetso ea data e potlakileng. Mojule o khona ho fana ka matla a tsoang ho 5mW, e leng bohlokoa bakeng sa ho boloka botsitso ba matšoao ho pholletsa le lits'ebetso tse fapaneng tsa marang-rang.
E tsamaisoa ke motlakase o le mong o motle, mochine oa letoto la LK-NYC10D o entsoe bakeng sa ts'ebetso e tsitsitseng ho tloha ho +7V ho ea ho +36V. Ho feta moo, mojule ona o na le sistimi e bonts'ang boemo ba ts'ebetso e fanang ka maikutlo a nako ea nnete mabapi le maemo a tloaelehileng a phepelo ea motlakase le tlhahiso ea matla a optical, e matlafatsang ts'epo ea sistimi le ho nolofatsa tlhahlobo.
Technical tobileng
Lintlha tse phahameng haholo
| paramethara | letšoao | Min. | Mofuta. | Max. | Unit |
| Storage mocheso | TSTG | -55 | + 25 | + 85 | ℃ |
| Mocheso o sebetsang | TC | -40 | + 25 | + 70 | ℃ |
| Matla a kenyang RF1 | Pin | - | + 10 | + 20 | dBm |
| Palo ea li-volts | Vin | +7 | + 12 | + 36 | V |
(1) Leqhubu le tsoelang pele (CW)
Tlhaloso ea Optical le Motlakase (TC = 22±3℃)
| paramethara | letšoao | Boemo ba teko | Min. | Mofuta. | Max. | Unit | mantsoe |
| Wavelength | λ | - | 1527.99 | - | 1563.05 | nm | ITU Standard |
| Khafetsa (3dB) | f3dB | Sehlopha sa S | 0.1 | - | 3.5 | GHz | - |
| Sehlopha sa C | 0.1 | 8.5 | GHz | - | |||
| Matla a Tlhahiso ea Optical | P | - | 5 | 10 | - | mW | - |
| Lerata le Lekanang le Matla | LERATA | - | - | - | -155 | dBc/Hz | - |
| VSWR | VSWR | - | - | - | 2 | ||
| Kenya 1 dB Compress | - | - | + 13 | + 15 | - | dBm | - |
Phepelo ea Matla (TC = 22±3℃)
| paramethara | Min. | Mofuta. | Max. | Unit |
| Palo ea li-volts | +7 | + 12 | + 36 | V |
| Current(2) | 0.07 | 0.1 | 1 | A |
(2) Boemo ba teko:Vin=+12V.
● Boitsebiso bo Tloaelehileng
Setšoantšo sa 1 LK-NYC10D-S DML DFB Laser Tloaelehileng Curve ea Maqhubu
Setšoantšo sa 2 LK-NYC10D-C DML DFB Laser Tloaelehileng Curve ea Maqhubu

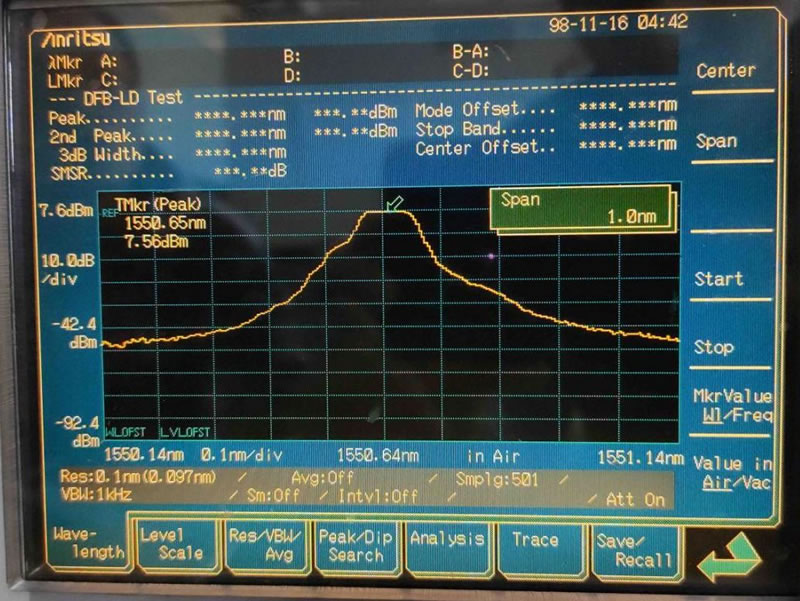

● Mokokotlo o tloaelehileng oa spectral
Setšoantšo sa 3 LK-NYC10D DML DFB Laser Tloaelehileng spectrum Curve

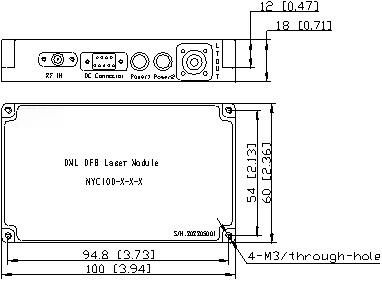

● Dimension Unit:mm[inch]
Setšoantšo sa 4 LK-NYC10D DML DBF Laser Module Dimension
Sehokelo sa RF: SMA
Sehokelo sa Matla: J30J-9-ZKP
● Boitsebiso ba Odara
Leqephe la 1:
| ea mohlala | Wavelength e Tloaelehileng |
| S | 0.1 ～ 3.5GHz |
| C | 0.1 ～ 8.5GHz |
Leqephe la 2
| NO. | Hangata(THz) | Wavelength (nm) | NO. | Hangata(THz) | Wavelength (nm) | |
| C15 | 191.5 | 1565.50 | C39 | 193.9 | 1546.12 | |
| C16 | 191.6 | 1564.68 | C40 | 194 | 1545.32 | |
| C17 | 191.7 | 1563.86 | C41 | 194.1 | 1544.53 | |
| C18 | 191.8 | 1563.05 | C42 | 194.2 | 1543.73 | |
| C19 | 191.9 | 1562.23 | C43 | 194.3 | 1542.94 | |
| C20 | 192 | 1561.41 | C44 | 194.4 | 1542.14 | |
| C21 | 192.1 | 1560.61 | C45 | 194.5 | 1541.35 | |
| C22 | 192.2 | 1559.79 | C46 | 194.6 | 1540.56 | |
| C23 | 192.3 | 1558.98 | C47 | 194.7 | 1539.77 | |
| C24 | 192.4 | 1558.17 | C48 | 194.8 | 1538.98 | |
| C25 | 192.5 | 1557.36 | C49 | 194.9 | 1538.19 | |
| C26 | 192.6 | 1556.55 | C50 | 195 | 1537.4 | |
| C27 | 192.7 | 1555.75 | C51 | 195.1 | 1536.61 | |
| C28 | 192.8 | 1554.94 | C52 | 195.2 | 1535.82 | |
| C29 | 192.9 | 1554.13 | C53 | 195.3 | 1535.04 | |
| C30 | 193 | 1553.33 | C54 | 195.4 | 1534.25 | |
| C31 | 193.1 | 1552.52 | C55 | 195.5 | 1533.47 | |
| C32 | 193.2 | 1551.72 | C56 | 195.6 | 1532.68 | |
| C33 | 193.3 | 1550.92 | C57 | 195.7 | 1531.9 | |
| C34 | 193.4 | 1550.12 | C58 | 195.8 | 1531.12 | |
| C35 | 193.5 | 1549.32 | C59 | 195.9 | 1530.33 | |
| C36 | 193.6 | 1548.51 | C60 | 196 | 1529.55 | |
| C37 | 193.7 | 1547.72 | C61 | 196.1 | 1528.77 | |
| C38 | 193.8 | 1546.92 | C62 | 196.2 | 1527.99 |
Leqephe la 3:
| ea mohlala | sehokedi | mantsoe |
| N | Che | Phokee |
| A | FC / APC | E tloaelehileng 9/125μm SM Fiber |
| P | FC / PC | E tloaelehileng 9/125μm SM Fiber |
dikopo
Ho tlosa Antenna
Mehala ea cellular le PCS
Analog RF e hokahanya phetiso
Tracking, Telemetry, le Control
Puisano ya waelese ya Broadband
Sistimi ea DWDM
Wireless Backhaul
