LK-D-SS-06-T Series Optical Delay Line & Optical Simulator
- Bandwid ho fihla ho 6.5GHz
- Matla a phahameng
- Kopo e pharaletseng ea mocheso
- Karabo ea amplitude e tlase
- Litieho tsa nako tse ikhethileng
Tlhaloso ea Sehlahisoa
Ka ho sebelisa theknoloji ea morao-rao ea Microwave-photonic, LK-D-SS-06-T series optical delay line le optical simulator li etselitsoe ho fana ka ts'ebetso e ikhethang lits'ebetsong tse kang tlhahlobo ea radar, ts'ebetso ea matšoao, ts'ebetso ea mekhahlelo ea li-antenna, ketsiso ea li-antenna, le tlhahlobo ea lerata la mohato. Sistimi ena e tsoetseng pele e khona ho sebetsa ho pholletsa le bandwidth eohle ea P/L/S/C e nang le tahlehelo e nyane ea ho kenya, ho netefatsa mefuta e mengata e matla le ho itšehla thajana ho matla a motlakase. E boetse e ts'ehetsa mats'oao a mararo a ke keng a lekanngoa, e leng tšobotsi e e khethollang sebakeng sa ts'ebetso ea mats'oao a mahlale a holimo le a microwave.
Technical tobileng
Litšobotsi tsa Motlakase / Optical
| paramethara | Litekanyetso tsa Parameter | Unit | mantsoe | ||
| mets | tloaelehileng | Max | |||
| maqhubu Range | 0.1 | - | 6.5 | GHz | |
| Bophara ba Amplitude | - | ± 2 | ± 2.5 | dB | |
| Nako ea ho Qetela | 0.01 | - | 150 | us | Customized |
| Lieha ho Nepaha | -5 ‰ | - | +5 ‰ | - | |
| Bohloko ba ho Shoeloa tsenyo | 0 | 10 | 20 | dB | Customized |
| Keletso VSWR | - | 1.5 | 2 | - | |
| Tlhahiso VSWR | - | 1.5 | 2 | - | |
| Ho se mamelle | - | 50 | - | Ω | |
| Kenya 1 dB Compress | - | + 10 | + 15 | dBm | |
| Spurious Signal Rejection Ratio | 60 | - | - | dBc | |
| Setšoantšo sa Lerata | - | 40 | 50 | dB | 5 rona, 25 ℃ |
| Sebetsa Mocheso | -55 | - | + 85 | ℃ | Sheba Boitsebiso ba ho Odara |
| Storage Mocheso | -55 | - | + 85 | ℃ | |
| Relative Detiety vs. Mocheso | - | - | 7 | ppm/℃ | |
| Tahlehelo ea ho Kena Khahlanong le Mocheso | - | 3 | 6 | % / ℃ | |
Tlhaloso ea Sehokelo & Phepelo ea Matla
| Pin | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| Palo ea li-volts | NC | lakg | + 12V | NC |
| Tlhahlobo ea Hona joale | - | - | 0.15 | - |
| Boemo ba Hona joale | 1 |

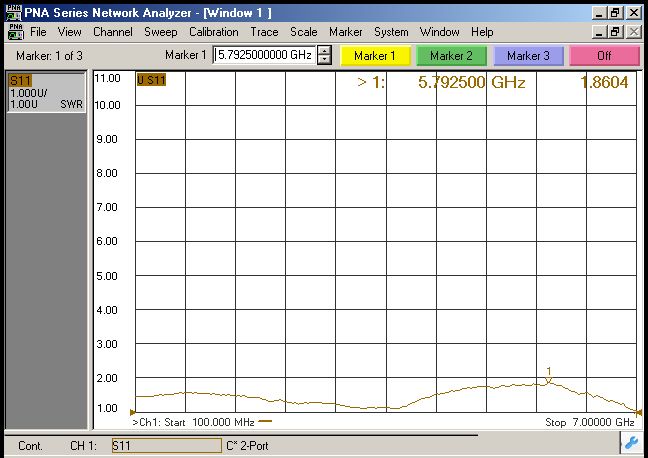

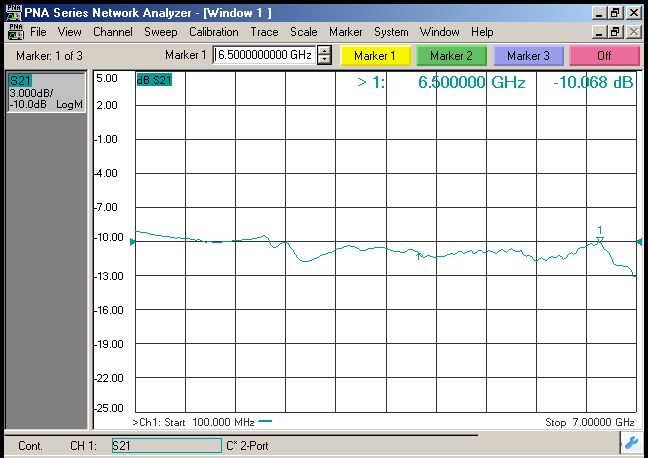

Li-Curves tse Tloaelehileng tsa Karabelo (25℃)
Dimension and Pins ( Unit: mm[inch])
RF sehokelo: SMA-K (Customized)
DC sehokelo: DE-9PS (Customized)
| Mofuta sehlahisoa | LK-D-SS-06-TG | mantsoe | |||||
| Ho lieha ha nako (rona) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X (mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
| Mofuta sehlahisoa | LK-D-SS-06-TP | mantsoe | |||||
| Nako ea ho lieha (rona) | 8 | 35 | 60 | 80 | 110 | 150 | diseke |
| X (mm) | 20 | 45 | 55 | 65 | 78 | 95 | |
Ho laela Boitsebiso
| Mofuta sehlahisoa | Packages | Maemo a Boleng | Sebetsa Mocheso | Storage Mocheso |
| LK-D-SS-06-TGI | Standard | Boemo ba indasteri | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-06-TGM | Boemo bo mahareng | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-06-TGS | Sehlopha se khethehileng | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-06-TPI | diseke | Boemo ba indasteri | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-06-TPM | Boemo bo mahareng | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-06-TPS | Sehlopha se khethehileng | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
