LK-D-SS-18-T Series Optical Delay Line & Optical Simulator
- Bandwid ho fihla ho 18GHz
- Matla a phahameng
- Kopo e pharaletseng ea mocheso
- Karabo ea amplitude e tlase
- Litieho tsa nako tse ikhethileng
Tlhaloso ea Sehlahisoa
E sebelisa theknoloji ea morao-rao ea Microwave-Photonics, LK-D-SS-18-T letoto la ho lieha ha li-antenna le simulator ea optical li fana ka ts'ebetso e ke keng ea bapisoa ka bongata ba lits'ebetso, ho kenyelletsa tlhahlobo ea radar, ts'ebetso ea mats'oao, ts'ebetso ea li-antenna tse fapaneng, ketsiso ea antenna, le tlhahlobo ea lerata la mohato. Sistimi ena e tsoetseng pele e etselitsoe ho sebetsa ntle le moroallo ho pholletsa le lihlopha tsohle tsa S/C/X/Ku, tse khetholloang ka tahlehelo e nyane ea ho kenya, mefuta e mengata e matla, ho itšehla thajana ka motlakase, le bokhoni ba ho sebetsana le matšoao a sa bonahaleng a mararo.
Technical tobileng
Litšobotsi tsa Motlakase / Optical
| paramethara | Litekanyetso tsa Parameter | Unit | mantsoe | ||
| mets | tloaelehileng | Max | |||
| maqhubu Range | 2 | - | 18 | GHz | |
| Bophara ba Amplitude | - | ± 2 | ± 2.5 | dB | |
| Nako ea ho Qetela | 0.01 | - | 150 | us | Customized |
| Lieha ho Nepaha | -5 ‰ | - | +5 ‰ | - | |
| Bohloko ba ho Shoeloa tsenyo | 0 | 20 | 30 | dB | Customized |
| Keletso VSWR | - | 1.8 | 2.2 | - | |
| Tlhahiso VSWR | - | 1.8 | 2.2 | - | |
| Ho se mamelle | - | 50 | - | Ω | |
| Kenya 1 dB Compress | - | + 13 | + 17 | dBm | |
| Spurious Signal Rejection Ratio | 60 | - | - | dBc | |
| Setšoantšo sa Lerata | - | 50 | 60 | dB | 5 rona, 25 ℃ |
| Sebetsa Mocheso | -55 | - | + 85 | ℃ | Sheba Boitsebiso ba ho Odara |
| Storage Mocheso | -55 | - | + 85 | ℃ | |
| Relative Detiety vs. Mocheso | - | - | 7 | ppm/℃ | |
| Tahlehelo ea ho Kena Khahlanong le Mocheso | - | 2 | 4 | % / ℃ | |
Tlhaloso ea Sehokelo & Phepelo ea Matla
| Pin | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| Palo ea li-volts | NC | lakg | + 12V | NC |
| Tlhahlobo ea Hona joale | - | - | 0.3 | - |
| Boemo ba Hona joale | 1 |

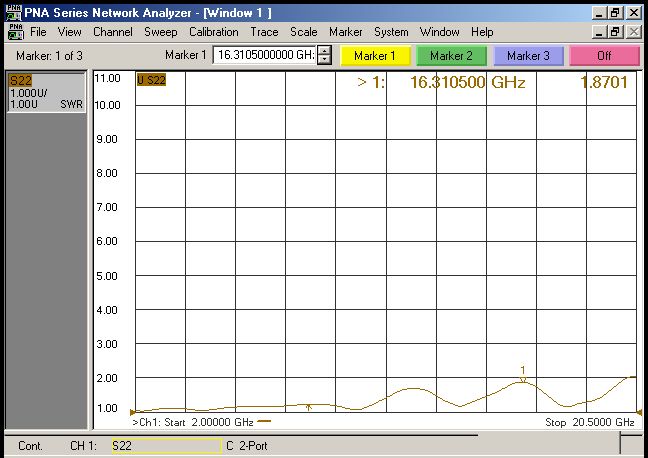

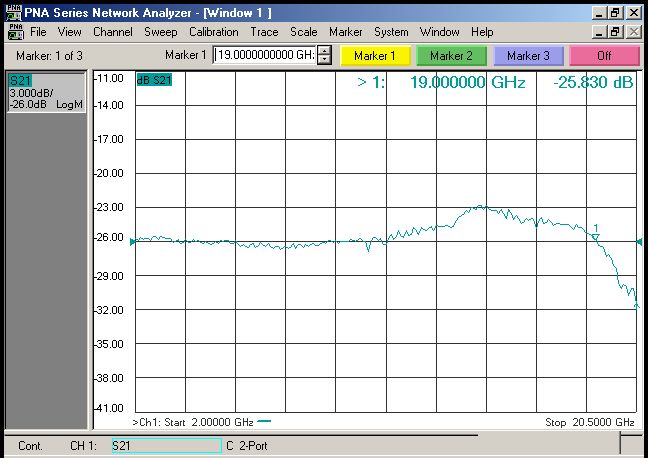

Li-Curves tse Tloaelehileng tsa Karabelo (25℃)

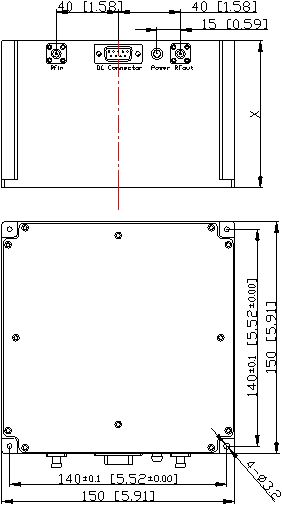

Dimension le Pins ( Unit: mm[inch])
RF sehokelo: SMA-K (Customized)
DC sehokelo: DE-9PS (Customized)
| Mofuta sehlahisoa | LK-D-SS-18-TG | mantsoe | |||||
| Ho lieha ha nako (rona) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X (mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
| Mofuta sehlahisoa | LK-D-SS-18-TP | mantsoe | |||||
| Nako ea ho lieha (rona) | 8 | 35 | 60 | 80 | 110 | 150 | diseke |
| X (mm) | 20 | 45 | 55 | 65 | 78 | 95 | |
Ho laela Boitsebiso
| Mofuta sehlahisoa | Packages | Maemo a Boleng | Sebetsa Mocheso | Storage Mocheso |
| LK-D-SS-18-TGI | Standard | Boemo ba indasteri | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-18-TGM | Boemo bo mahareng | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-18-TGS | Sehlopha se khethehileng | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-18-TPI | diseke | Boemo ba indasteri | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-18-TPM | Boemo bo mahareng | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-18-TPS | Sehlopha se khethehileng | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
dikopo
Teko ea radar/tekanyetso
Phatlalatso ea lipontšo
Ntoa ea elektronike
Sehlopha sa li-antenna
Ketsiso ya antenna
