LK-NYC04D DML DFB Transmitter
- DML DFB Laser Technology
- Phaello e Phahameng ea Matla
- Bandwide e betere ho feta 4GHz
- CWDM Wavelength Compatibility
- Tšebeliso e matla ea matla
- Theko e tlase
Tlhaloso ea Sehlahisoa
LK-NYC04D DML Transmitter haholo-holo e entsoe ka laser ea DML DFB, othomathike ea taolo ea matla a optical, voltage stabilizing conversion circuit, le monitoring indicator circuit. Transmitter ena e na le maqhubu a laser a DML a lumellanang le maemo a CWDM, haholo-holo ho 1270nm, 1290nm, 1310nm, 1330nm, 1350nm, le 1370nm.
E fana ka bandwidth ea modulation e fetang 4GHz mme e ka fana ka matla a tsoang ho feta 2mW. Module o sebetsa ka phepelo e le 'ngoe e ntle ea matla mme e etselitsoe ho sebetsa ka ts'epo ka har'a marang-rang ho tloha ho +7V ho ea ho +36V. Ho feta moo, mojule o na le sesupo se netefatsang maemo a tloaelehileng a phepelo ea motlakase le tlhahiso ea matla a optical, e nolofalletsang ho beha leihlo le tlhokomelo.
Technical tobileng
Lintlha tse phahameng haholo
| paramethara | letšoao | Min. | Mofuta. | Max. | Unit |
| Storage mocheso | TSTG | -40 | + 25 | + 70 | ℃ |
| Mocheso o sebetsang | TC | -20 | + 25 | + 55 | ℃ |
| Matla a kenyang RF1 | Pin | - | 0 |
+ 17 | dBm |
| Palo ea li-volts | Vin | +7 | + 12 | + 36 | V |
Tlhaloso ea Optical le Motlakase (TC = 25℃)
| paramethara | ea mohlala | letšoao | Min. | Mofuta. | Max. | Unit | mantsoe |
| Wavelength | UC | λ | 1270 | 1310 | 1370 | nm | ITU Standard |
| LC | - | CWDM | - | ||||
| Khafetsa (3dB) | - | f3dB | 0.1 | - | 4 | GHz | - |
| Matla a Tlhahiso ea Optical | - | P | - | 1 | - | mW | - |
| Lerata le Lekanang le Matla | UC | LERATA | - | - | -150 | dBc/Hz | - |
| LC | - | - | -155 | ||||
| VSWR | - | VSWR | - | - | 2 | ||
| Kenya 1 dB Compress | - | - | - | + 10 | - | dBm | - |
Phepelo ea Matla (TC = 22±3℃)
| paramethara | Min. | Mofuta. | Max. | Unit |
| Palo ea li-volts | +7 | + 12 | + 36 | V |
| Current(2) | 0.03 | 0.1 | 0.15 |
A |
(1) Boemo ba teko:Vin=+12V.
● Boitsebiso bo Tloaelehileng

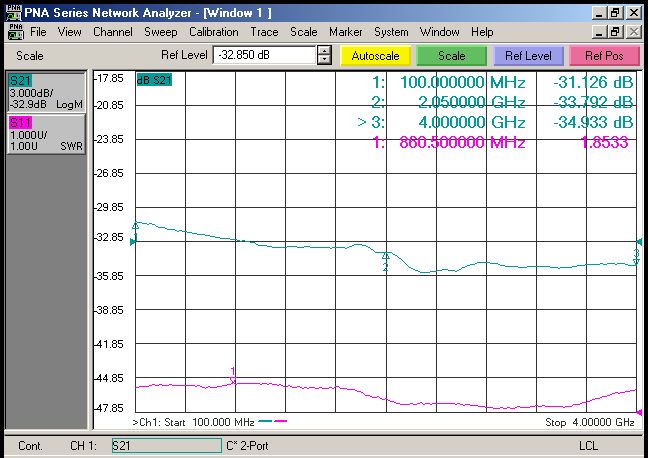

Setšoantšo sa 1 LK-NYC04D-CL DML DBF Laser Typical Frequency Curve
Setšoantšo sa 2 LK-NYC04D-UC DML DBF Laser Typical Frequency Curve
● Mokokotlo o tloaelehileng oa spectral

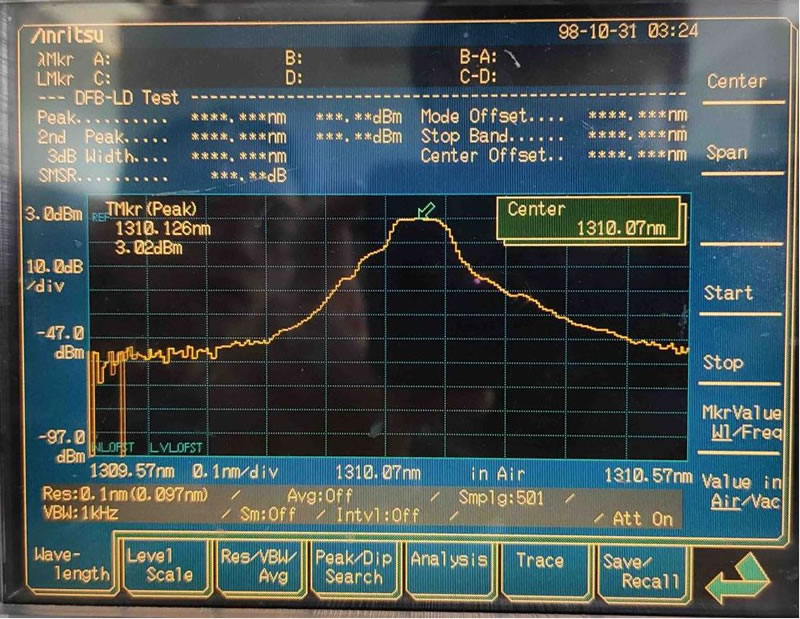

Setšoantšo sa 3 LK-NYC04D DML DBF Laser Tloaelehileng spectrum Curve
● Dimension Unit:mm[inch]

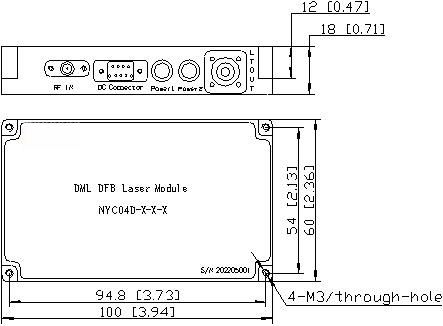

Setšoantšo sa 4 LK-NYC04D DML DBF Transmitter Dimension
Sehokelo sa RF: SMA
Sehokelo sa Matla: J30J-9-ZKP
● Boitsebiso ba Odara
Leqephe la 1:
| ea mohlala | Wavelength e Tloaelehileng |
| UL | 1310nm |
| CL | CWDM (boikhethelo ba wavelength) |
Leqephe la 2:
| ea mohlala | matla |
| 00 | 1mW |
| 02 | 2mW |
| 04 | 4mW |
| 06 | 6mW |
Leqephe la 3:
| ea mohlala | sehokedi | mantsoe |
| N | Che | Phokee |
| A | FC / APC | E tloaelehileng 9/125μm SM Fiber |
| P | FC / PC | E tloaelehileng 9/125μm SM Fiber |
dikopo
Ho tlosa Antenna
Mehala ea cellular le PCS
Analog RF e hokahanya phetiso
Tracking, Telemetry, le Control
Puisano ya waelese ya Broadband
