LK-NYCMT Series UWB ka ho toba Modulated Transmitter
- Ultra-wideband (e betere ho feta 18GHz)
- CWDM
- Phaello e Phahameng ea Matla
- Matla a ho hlahisa a phahameng
- RIN e tlase
- Mocheso oa mocheso oa kesi: (-40 ℃～70℃)
Tlhaloso ea Sehlahisoa
LK-NYCMT Transmitter e hahiloe ka lebelo le phahameng ka ho toba le Distributed Feedback (DFB) laser, othomathike ea taolo ea matla a optical, potoloho ea taolo ea mocheso o itekanetseng, potoloho ea phetoho ea voltage-stabilizing, leihlo le pontšo ea potoloho. Transmitter ena e fana ka khetho ea wavelengths (1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 1390nm) mme e ithorisa ka bandwidth ea modulation e fetang 18GHz, e nang le matla a tsoang a khonang ho fihla ho 10mW.
LK-NYCMT Transmitter e sebetsa ka phepelo e le 'ngoe e nepahetseng ea motlakase 'me e entsoe hore e sebetse ka ts'epahalo ka har'a maqhubu a tsoang ho +7V ho ea ho +36V. E na le likarolo tse 'maloa tse molemo, ho kenyelletsa le lerata le tlase le matla (RIN), botsitso bo botle ho bophahamo ba maqhubu a phallo, le matla a phahameng a phallo, a kenyang letsoho ts'ebetsong ea eona e holimo lits'ebetsong tsa puisano tsa optical.
Ntle le moo, LK-NYCMT Transmitter e na le ts'ebetso e bonts'ang maikutlo e fanang ka maikutlo a hlakileng mabapi le boemo ba phepelo ea motlakase le tlhahiso ea matla a optical, ho netefatsa hore liparamente tsa ts'ebetso ea sistimi li ka har'a sebaka se lakatsehang, tšobotsi ena e bohlokoa bakeng sa ho boloka botsitso ba sistimi le ho thusa ho rarolla mathata kapele.
Technical tobileng
Lintlha tse phahameng haholo
| paramethara | letšoao | Min. | Mofuta. | Max. | Unit |
| Storage mocheso | TSTG | -55 | + 25 | + 85 | ℃ |
| Mocheso o sebetsang | TC | -40 | + 25 | + 70 | ℃ |
| Matla a kenyang RF1 | Pin | - | + 10 | + 20 | dBm |
| Palo ea li-volts | Vin | +7 | + 12 | + 36 | V |
(1) Leqhubu le tsoelang pele (CW) mokhoa oa ho sebetsa.
Tlhaloso ea Optical le Motlakase (TC = 22±3℃)
| paramethara | letšoao | boemo | Min. | Mofuta. | Max. | Unit |
| Wavelength | λ | - | 1370 | CWDM | 1390 | nm |
| Khafetsa (3dB) | f3dB | X sehlopha | 0.1 | - | 12 | GHz |
| Ku band | 1 | - | 18 | |||
| Matla a hlahisoang ke khanya | P | - | 5 | 10 | - | mW |
| Lerata le Lekanang le Matla | LERATA | - | - | - | -155 | dBc/Hz |
| Khutlisetsa tahlehelo (VSWR) | VSWR | X sehlopha | - | - | 2 | - |
| Ku band | - | - | 2.2 | |||
| Kenya 1 dB Compress | - | - | + 13 | + 15 | - | dBm |
Phepelo ea Matla (TC = 22±3℃)
| paramethara | Min. | Mofuta. | Max. | Unit |
| Palo ea li-volts | +7 | + 12 | + 36 | V |
| Current(2) | 0.07 | 0.1 | 1 | A |
(2) Boemo ba teko:Vin=+12V.
● Tsela e Tloaelehileng ea Karabelo
Setšoantšo sa 1 LK-NYCMT-X Transmitter Tloaelehileng ea Karabo Curve
Setšoantšo sa 2 LK-NYCMT-Ku Transmitter Tloaelehileng ea Karabo Curve
● Spectrogram e Tloaelehileng
Setšoantšo sa 3 LK-NYCMT Transmitter Tloaelehileng Spectrogram
● Dimension Unit:mm[inch]

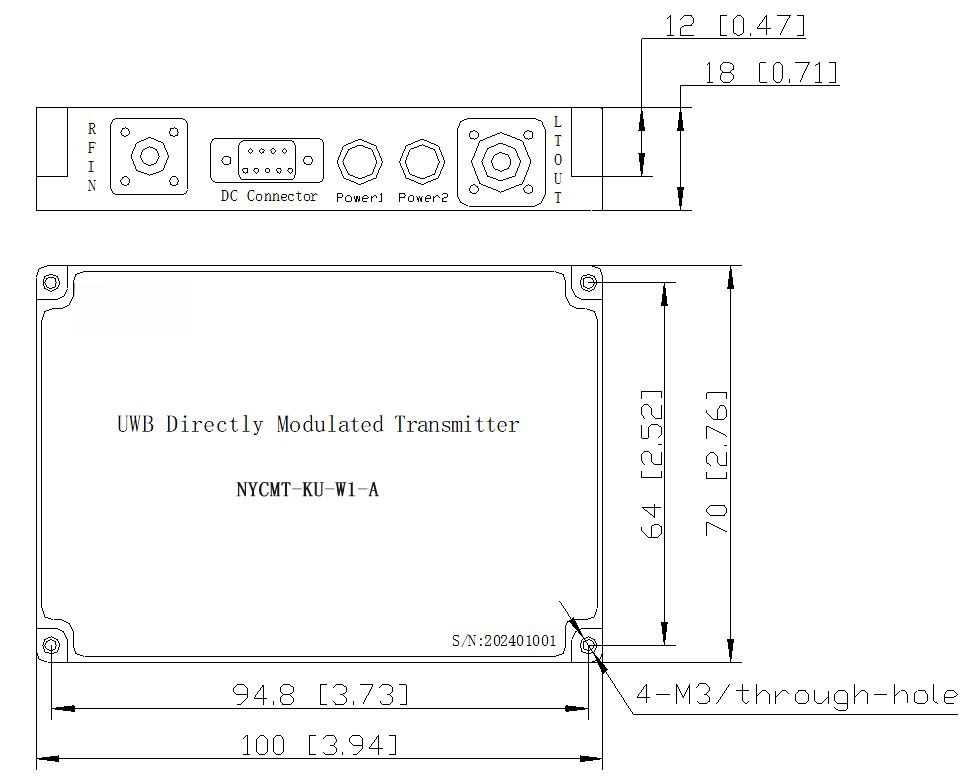

Setšoantšo sa 4 LK-NYCMT Transmitter Dimension
Sehokelo sa RF: SMA
Sehokelo sa Matla: J30J-9-ZKP
● Pin Of Power Supply
| paramethara | Tlhaloso | ||||||||
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Palo ea li-volts | Vin | NC | lakg | NC | |||||
● Taelo Information
Leqephe la 1:
| letšoao | Tlhaloso |
| CM | Sephutheloana sa serurubele sa CWDM Coarse Wavelength Division Multiplexer 7PIN |
Leqephe la 2
| letšoao | Tlhaloso |
| X | 0.1 - 12 GHz |
| Ku | 1 - 18 GHz |
Leqephe la 3:
| letšoao | W1 | W2 | W3 | W4 | W5 | W6 | W7 |
| Wavelength (nm) | 1270 | 1290 | 1310 | 1330 | 1350 | 1370 | 1390 |
Leqephe la 4:
| letšoao | sehokedi Type | Tlhaloso |
| N | Customized | Customized |
| A | FC / APC | Tloaelo ea 9/125μm SM fiber |
| P | FC / PC | Tloaelo ea 9/125μm SM fiber |
dikopo
Antenna le Radar
Sistimi ea li-countermeasure tsa elektroniki
Analog RF e hokahanya phetiso
Puisano ea Broadband Wireless
Seteishene sa motheo sa puisano ea mehala
